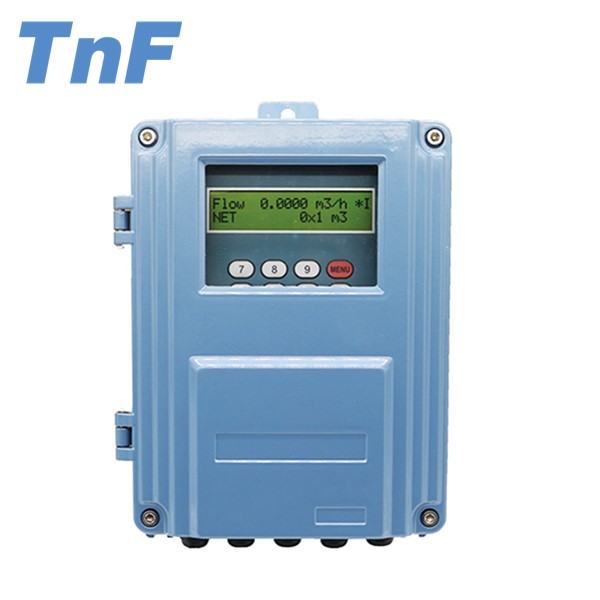

The flowmeters of the DTI-100F is carefully designed so that their operation is simple and easy. The unique clamp-on fixture design makes the installation very simple and no special skills or tools are required.Due to the non-intrusivenature of the clamp-on technology, there is no pressure drop, no moving parts,no leaks, no risk of contamination, no risk of corrosion,no pressure dependency.

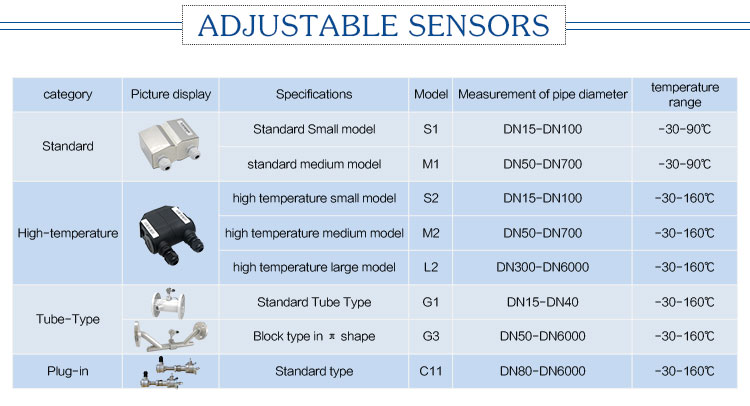

Transducers' data
| Technical data | HS | HM | S1(standard) | M1(standard) | L1(standard) | S1H(high temp) | M1H(high temp) |
| Diameter | 15-100 | 50-700 | 15-100 | 50-700 | 300-6000 | 15-100 | 50-700 |
| Material | Aluminium alloy | ABS | High temperature material | ||||

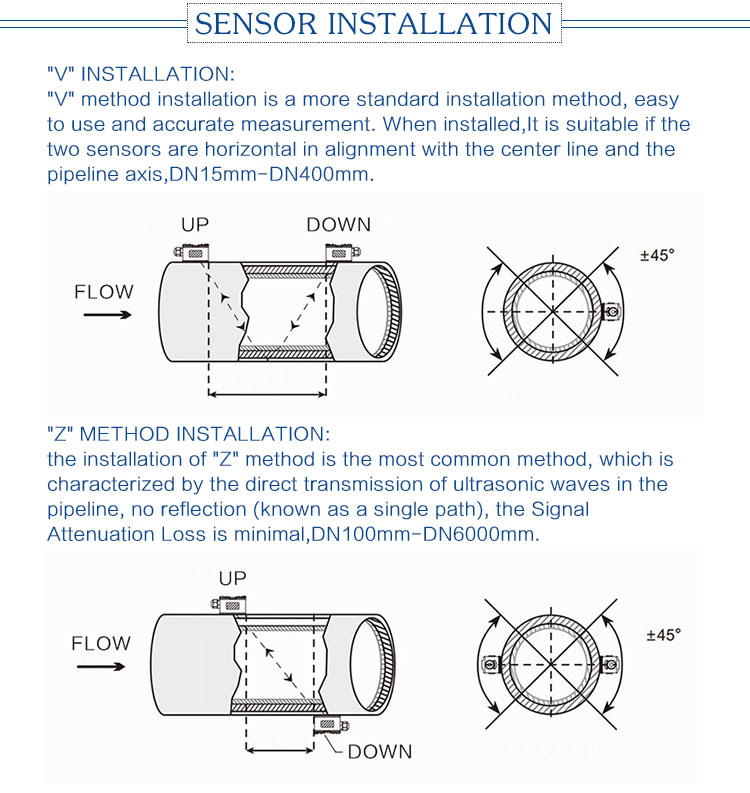

| Installation | V(N.W) | V.Z | V(N.W) | V.Z | Z | V(N.W) | V.Z |
| Calibration | The whole machine matching calibration | ||||||
| Magntism | Yes | No | |||||
| Temperature | 0°C~70°C | 0°C~160°C | |||||
| Protection | IP65 | ||||||
| Size | 200×25×25 | 280×40×40 | 45×30×30 | 60×45×45 | 80×70×55 | 90×85×24 | 90×82×29 |
| Weight(g) | 250 | 1080 | 75 | 250 | 650 | 94 | 150 |
| Medium | Water,sea water,sewage water,alcohol,oil and others | ||||||
| medium turbidity | ≤10,000 | ||||||
| Pipe material | cast/stanliess steel,cast iron,copper,PVC,aluminium,Fiberglass,lining available | ||||||
| Lining material | EPCT,Rubber,mortar,PP,GPPS,Bakelite,PTFE etc. | ||||||

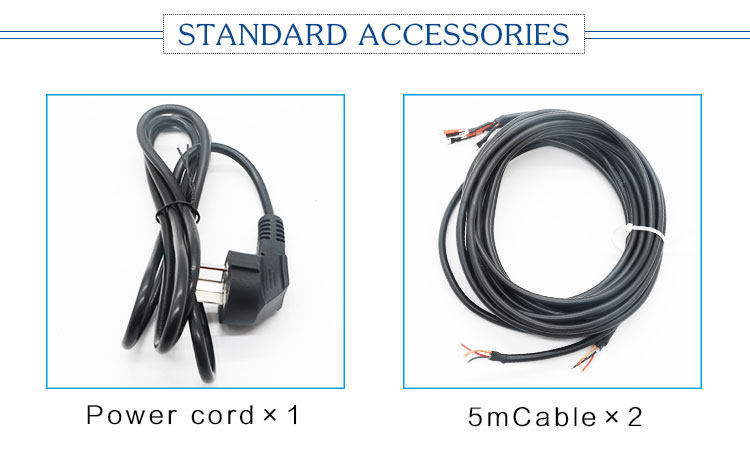

| Cable | 5M×2,10M×2,15M×2 | ||||||
