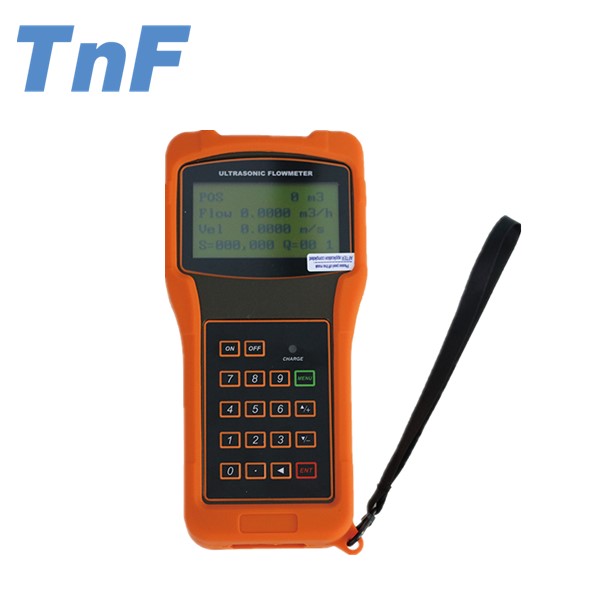

Hand-hold ultrasonic flow meter applicate to online calibration and inspection measurement of liquid flow among various industry field,it with the features of high accurancy,good consistency,battery supply, easy control,easy to take,it's the real protable ultrasonic flow meter.
| Item | Technical Features |
| Measuring Accuracy | Flowmeter/Calorimeter: Better than 1% ; Water meter: Better than 2%; Heat Meter: EN1434 Standard |
| Velocity | ±0.03~±105ft/s(±0.01~±32m/s),bi-ditectional |
| Flow Type | Water,sea water,industrial water ,oil liquid,sewage and single liquid available for ultrasonic or other compact pipe and lined pipe allowed |
| Output Interface | OCT,RS232 |
| Repeatability | Better than 0.2% or 0.5% |
| Liquid Temp | -22 F~320 F (-30 C~160 C) |
| Pipe Size | 1/2”~240”(DN15mm~6000mm) |
| Pipe Material | Steel,stainless steel,cast iron,copper,PVC, aluminum,glass reinforced plastics |
| Battery and Power | 3AAA Ni-H built-in batteries, when fully recharged , it will last over 12 hours of operation.90V-230VAC for the charge |
