Product Description

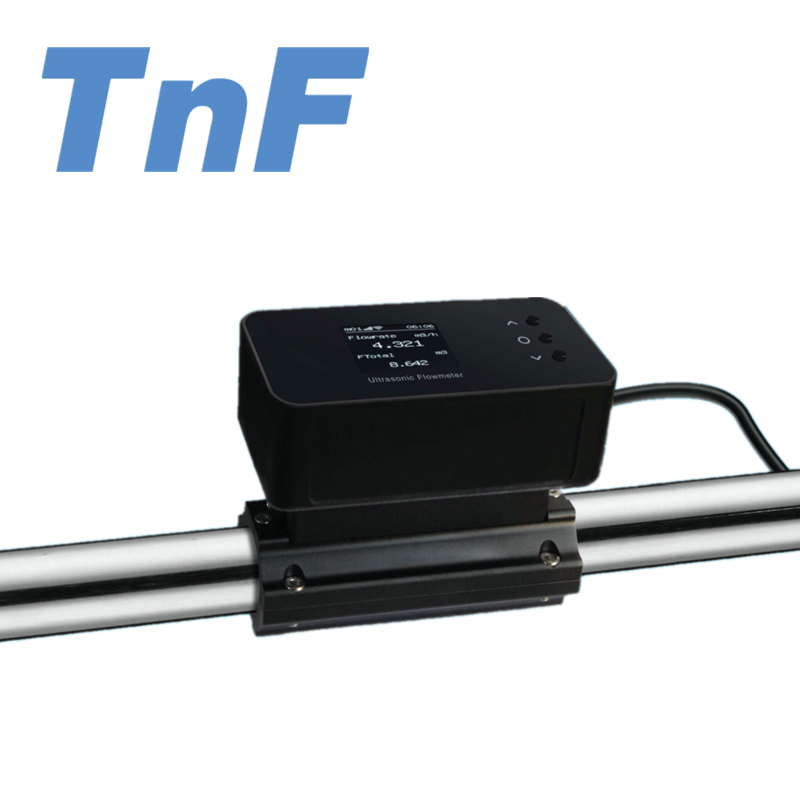

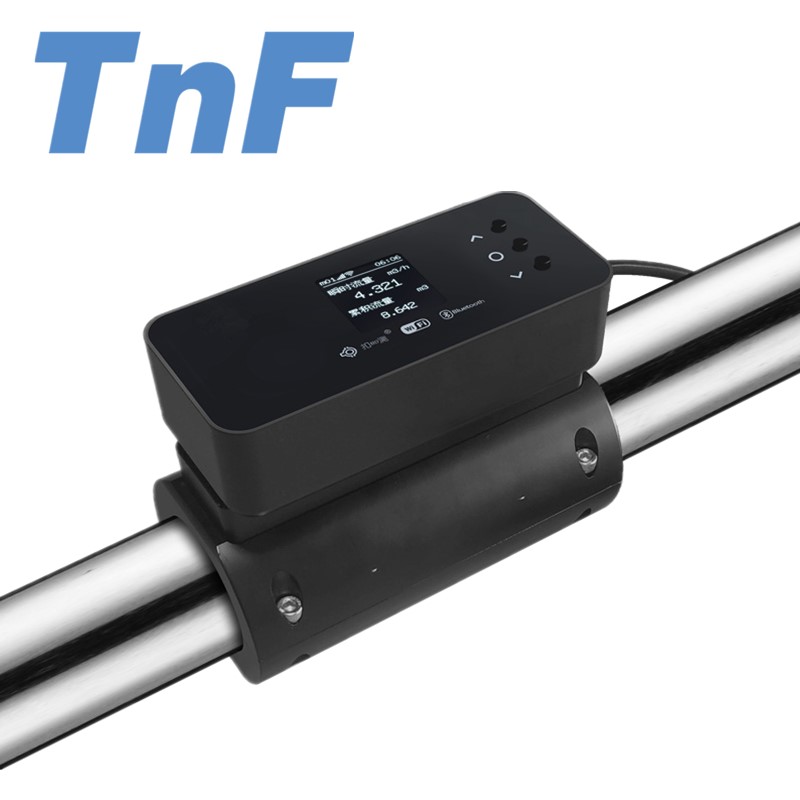

F2 ultrasonic flowmeter is designed for catering to the small pipe size of PVC, carbon steel, stainless steel, copper which can be widely used in HVAC chilled water system, building automation system, farming irrigation system, residential water supply system, cleaning system, recirculating aquaculture system(RAS), etc. It is very easy to install, the installation only needs 30s at fast. The compact structure, is suitable for various narrow working environments.

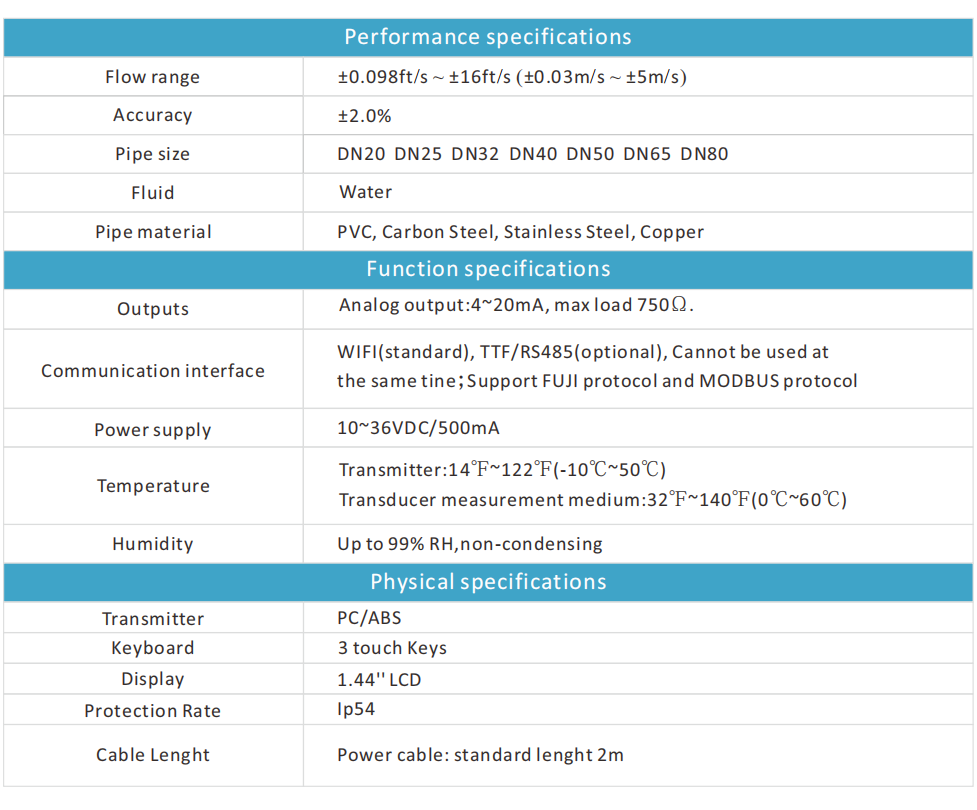

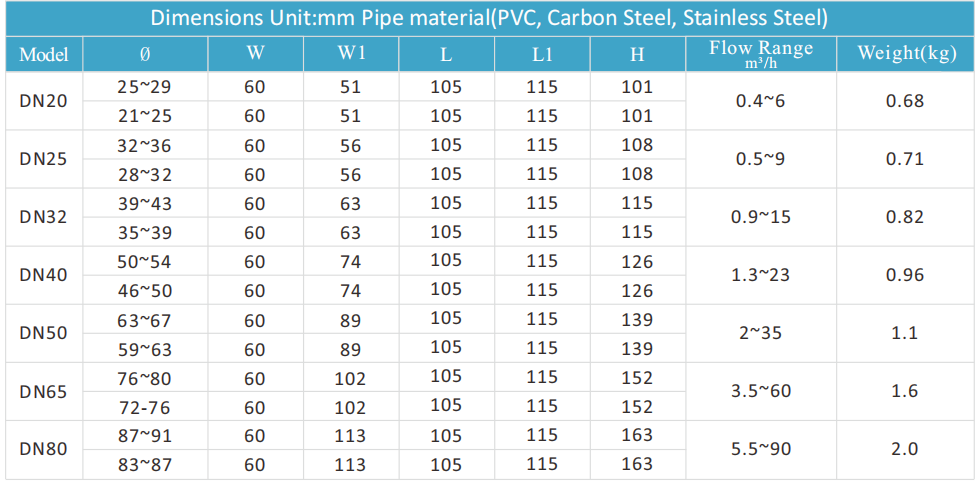

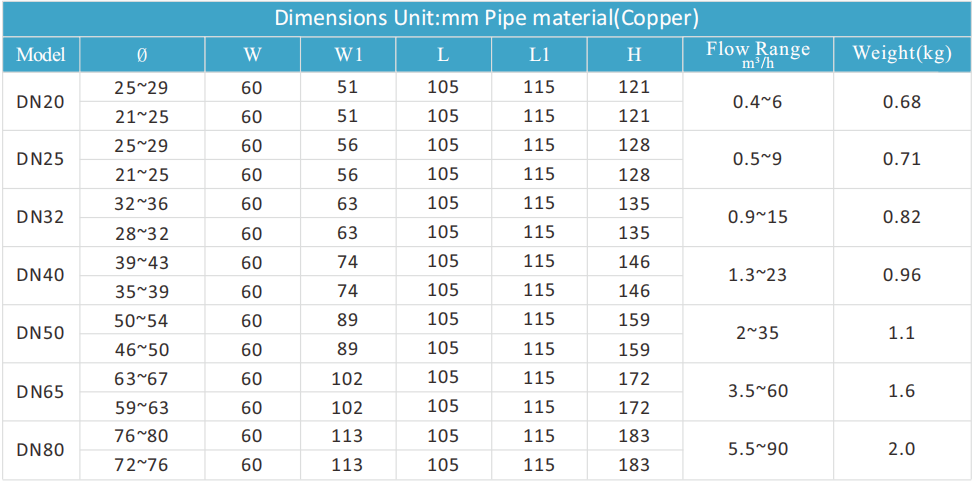

Specification

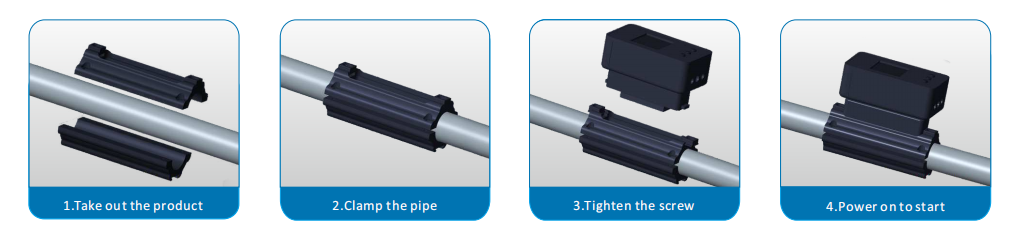

Installation Steps

The F2 clip on meter is measured with an integrated design. The installation is very simple. F2 is directly clipped on the pipe section, and tighten the screw to turn on the power flow measurement.
